How the COSPAS-SARSAT system finds anyone, anywhere, under any conditions
Most satellite systems observe.
This one listens.
And when it hears something, people move.
The System That Saves Lives—Quietly
Since 1982, an international satellite network has helped rescue over 60,000 people worldwide.
It operates continuously.
It is free to use.
And most people don’t know it exists.
That system is COSPAS-SARSAT—a multinational program designed to detect and locate emergency distress beacons anywhere on Earth.
Founded in 1979 by:
- The United States
- The Soviet Union
- Canada
- France
It has since expanded to over 45 participating nations, forming one of the most successful international cooperative systems ever built.
What COSPAS-SARSAT Actually Does
At its core, the system is simple:
A distress beacon activates.
Satellites detect the signal.
Ground stations process the data.
Rescue forces are alerted.
But the execution is anything but simple.

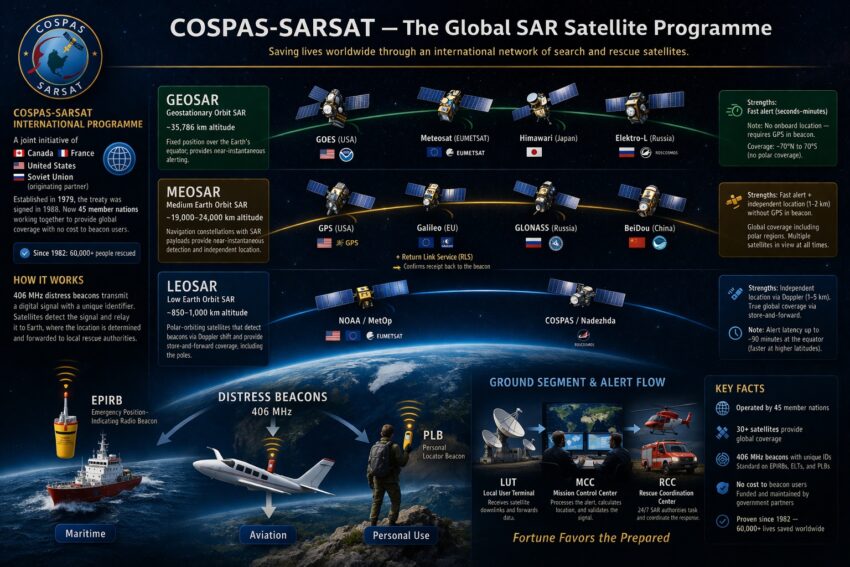

How It Works (End-to-End)
1. Distress Signal Activation
Three primary beacon types feed the system:
- EPIRB — Maritime (ships, offshore vessels)
- ELT — Aviation (aircraft, impact-activated or manual)
- PLB — Personal (hikers, remote workers, emergency kits)
All modern beacons transmit on:
👉 406 MHz — the global distress frequency
Each signal includes a unique digital ID, allowing responders to identify:
- The owner
- The platform (aircraft, vessel, individual)
- Emergency contact information
Many also include GPS coordinates, dramatically speeding up rescue.
2. Satellite Detection
The signal is detected by three separate satellite layers, each designed to solve a different problem:
LEOSAR — Low Earth Orbit SAR
~850–1,000 km altitude
- Polar-orbiting satellites
- Global coverage, including poles
- Uses Doppler shift to calculate position
Strengths:
- Works without GPS in the beacon
- Independent position calculation (1–5 km accuracy)
- Full global coverage
Limitations:
- Detection may take time (up to ~90 minutes at equator)
- Requires satellite pass overhead
Key systems:
- NOAA / MetOp (U.S./Europe)
- COSPAS / Nadezhda (Russia)
GEOSAR — Geostationary Orbit SAR
~35,786 km altitude
- Fixed position over the Earth
- Continuous regional coverage
Strengths:
- Near-instant alerting (seconds to minutes)
- Constant monitoring of large areas
Limitations:
- Cannot calculate position independently
- Requires GPS-enabled beacon
- No polar coverage
Key systems:
- GOES (USA)
- Meteosat (Europe)
- Himawari (Japan)
- Elektro-L (Russia)
- INSAT (India)
- Fengyun (China)
MEOSAR — Medium Earth Orbit SAR
~19,000–24,000 km altitude
The newest—and most capable—layer.
SAR payloads are hosted on navigation constellations:
- GPS (USA)
- Galileo (EU)
- GLONASS (Russia)
- BeiDou (China)
Strengths:
- Near-instant detection
- Independent position calculation (1–2 km accuracy)
- Multiple satellites in view simultaneously
- Global coverage, including polar regions
Unique capability:
👉 Return Link Service (Galileo)
Confirms back to the beacon that the distress signal was received.
That single feature changes behavior under stress—people know help is coming.
Why Three Systems Exist
Each layer compensates for the others:
- LEOSAR → global + independent positioning
- GEOSAR → immediate detection
- MEOSAR → speed + accuracy + redundancy
Together, they create:
👉 A persistent, global, multi-layer detection system
The Ground Segment (Where It Becomes Action)
Detection is only the first step.
The system only works because of what happens next.
Local User Terminal (LUT)
Ground stations that receive satellite data and process the signal.
Types:
- LEOLUT
- GEOLUT
- MEOLUT
Mission Control Center (MCC)
- Validates the alert
- Correlates multiple detections
- Determines location
Rescue Coordination Center (RCC)
- Dispatches rescue assets
- Coordinates response (air, sea, ground)
- Executes the mission
What Makes This System Unique
1. It’s Global
- Covers every ocean, continent, and polar region
2. It’s Free
- No subscription required for beacon activation
3. It’s Redundant
- Multiple satellites detect the same signal
4. It’s Independent
- Does not rely on cellular networks or infrastructure
5. It Works When Nothing Else Does
- Remote terrain
- Open ocean
- Disaster zones
- Infrastructure collapse
406 MHz vs. Legacy Systems
Before COSPAS-SARSAT modernization:
- 121.5 MHz analog beacons
- No ID
- No position
- ~98% false alerts
- Limited detection range
These were phased out of satellite processing in 2009.
Modern 406 MHz beacons provide:
- Unique identification
- Faster detection
- Accurate positioning
- Integration into a global system
Commercial Systems (And What They Are Not)
Devices like:
- Garmin inReach
- SPOT (Globalstar)
Provide:
- Messaging
- Tracking
- SOS alerts
But they are:
❗ Not part of COSPAS-SARSAT
They rely on:
- Private networks
- Subscription services
- Third-party coordination centers
They are useful—but not equivalent.
Operational Reality
If someone activates a modern 406 MHz beacon:
- Multiple satellites detect it almost immediately
- Position is calculated independently
- The alert is routed globally within minutes
- Rescue coordination begins
No infrastructure required.
No local dependency.
No delay caused by conditions.
Why This Matters
This system changes the equation for survival.
It removes:
- Isolation
- Lack of visibility
- Communication gaps
And replaces them with:
- Detection
- Identification
- Action
Where This Fits in the Bigger Picture
COSPAS-SARSAT is not just a rescue system.
It is part of a broader shift:
👉 Global, persistent awareness—available under any conditions
SAR satellites don’t just observe.
They respond.
This file contains a list of all the COSPAS-SARSAT satellites.
