Understanding Telephone Wiring

Below is a sneak peek of this content!

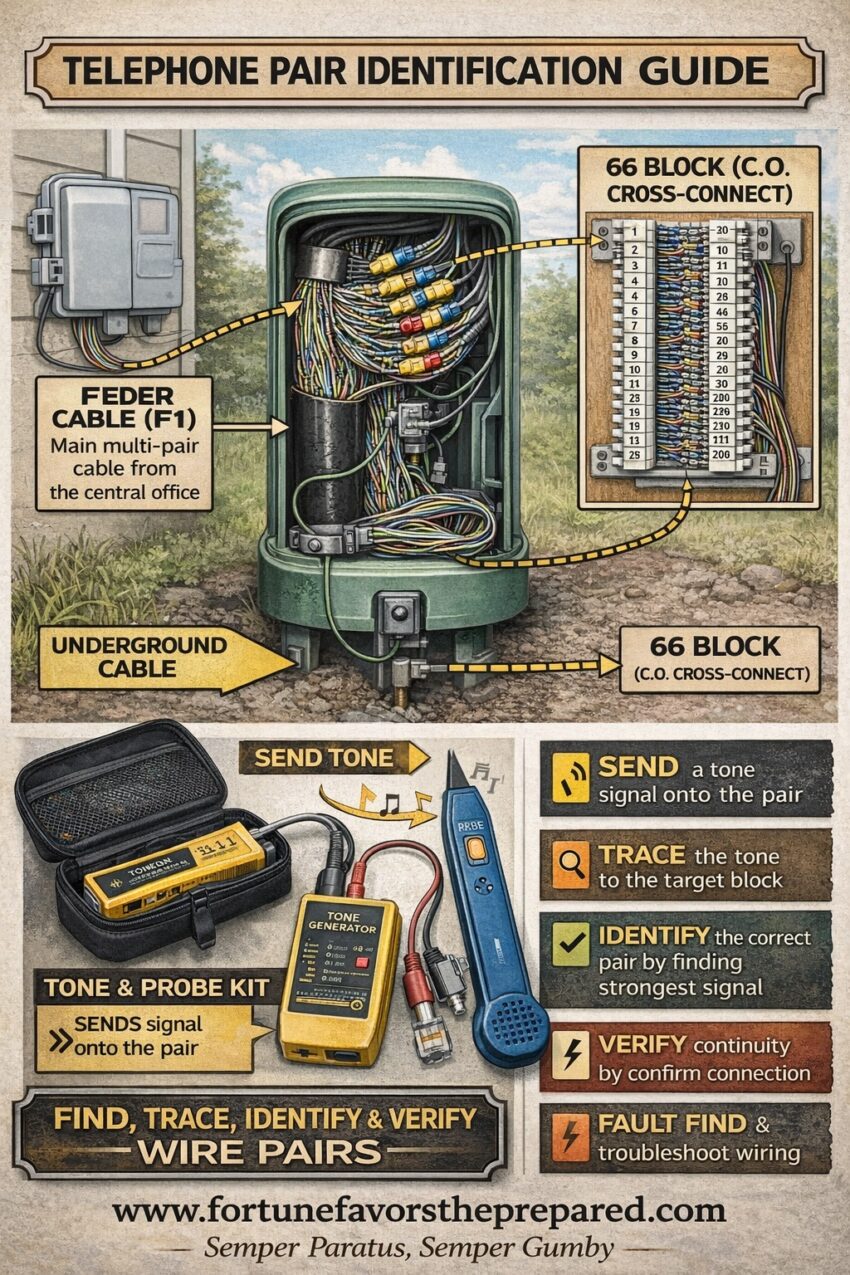

A Field Guide to Copper Infrastructure, Color Codes, and Troubleshooting This article references parts of the story in my fiction books in The Continuity Chronicles:The Meadow ProtocolAfter The BrushUnassigned AuthorityAvailable in my store for signed paperback and hard copies and from Amazon to include Kindle and Audible. Even in an era dominated by fiber and wireless systems, copper-based Plain Old Telephone Service (POTS) remains a critical layer of resilient communications infrastructure. From legacy voice circuits to backup connectivity during outages, understanding how traditional telephone wiring works is still a valuable skillset—especially for technicians, emergency planners, and communications-focused preparedness groups. This guide breaks down the full copper pathway—from the central office to the customer premise—while covering color codes, terminations, field tools, and real-world troubleshooting. 1. The 25-Pair Color Code: The Backbone of Copper Identification At the core of all copper telephone work is the 25-pair color code system, a standardized method for identifying conductors across cables, blocks, and splices. Each pair is defined by a combination of: Tip (A-leg / positive): White-based with a tracer color Ring (B-leg / negative): Solid color Color Group Structure Major (Tip) Colors: White, Red, Black, Yellow, Violet Minor (Ring) Colors: Blue, Orange, Green, Brown, Slate...
